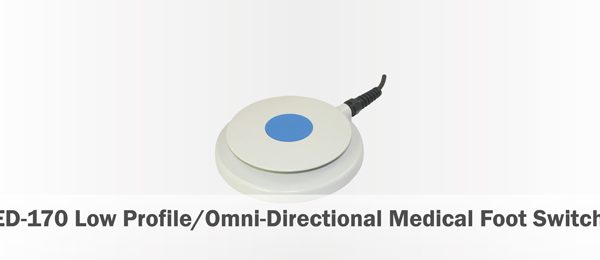

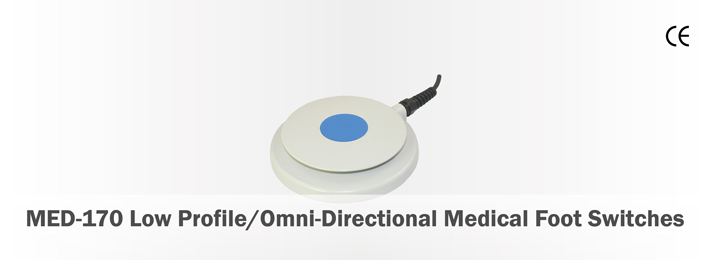

MED-170 Low Profile Omni-Directional Medical Foot
Free!
Out of stock
Operating Frequency 60 ops/min |
Insulation Resistance >100m?@500V DC |
Contact Resistance <25m?(initial) |
Rated Current/Voltage 5A or 10A 0-250V |
Dielectric Strength 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts |
Service Life Mechanically 2 x106 (operations) Electrically 5 x105 (operations) |
Operating Temperature -20~+80oC (-4~176oF) |
Degree of Protection IPX8 (NEMA 4, 4x, 6, 6P) |
| Datasheet | http://www.suns-usa.com/en/product.html/medical_foot_switches/MED-170_low_profile_omni-directional_medical_foot_switches/ |
|---|---|
| ProductType | Medical Foot Switches |
