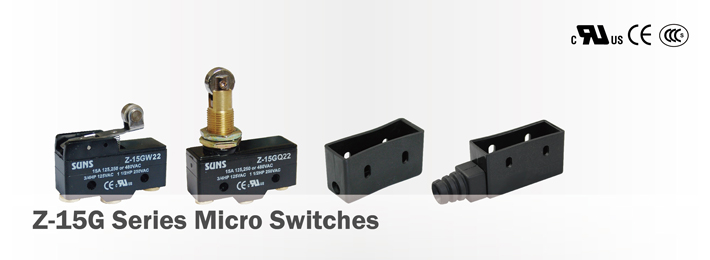

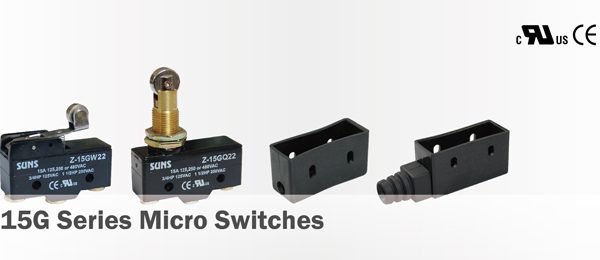

Z-15G Series Micro Switches
Free!
Out of stock
Operating Frequency: 0.01mm-1m/sec |
Rated Voltage/Current: 15/600VAC(UL file 240199) |
Service Life: Mechanically 1×107 (operations) |
Electrically 5×105 (operations) |
Operating Temperature: about -25~+80 (-4~+176) |
Humidity: <95%RH |
Degree of protection IP00/IP63 |
Delectric Strength: 1000VAC for 1 min between current carrying parts |
2500VAC for 1 min between non-current carrying parts |
| Datasheet | http://www.suns-usa.com/en/product.html/micro_switches/Z-15G_series_micro_switches/ |
|---|---|
| ProductType | Micro Switches |
Operating Speed: 0.05mm-2m/sec| Operating Frequency:Mechanical:120ops/min| Electrical: 30ops/min| Insulation Resistance:?>100M? @ 500V DC| Contact Resistance:??
Read More
Operating Speed:0.05mm-0.5m/sec| Rated Current/Voltage: 10A/600VAC(EN60947-5-1) AC15 A600/DC13 Q300| Service Life: Mechanically 50,000(ops)| Operating Temperature: -25~50??-13~122 F?with no icing| Actuating Force: 6N(+/-2N)| Actuating Distance: < 0.5mm| Contact Opening 2x2mm| Degree of Protection: IP67| Solenoid:| Rated Voltage(Ue):24 VDC(+/- 10%) 48VDC(+/- 10%) 120 VAC(+/- 10%) 240VAC(+/- 10%)| Rated current(Ie) 3A (24VDC) 1.5A(48VDC) 0.8A(120VAC) 0.5A(230VAC)| Solenoid duty cycle: 3%ED| … Continue reading SSD4 Series Latching Limit Switches
Read More
Operating Speed: 0.05mm-2m/sec| Operating Frequency:?Mechanical:120ops/min Electrical: 30ops/min| Insulation Resistance:?>100M? @ 500V DC| Contact Resistance:??
Read More
Operating Speed: 0.05mm-2m/sec| Operating Frequency:?Mechanical:120ops/min Electrical: 30ops/min| Insulation Resistance:?>100M? @ 500V DC| Contact Resistance:??
Read More
